Geminin

Antibody: CPTC-GMNN-1
Background

Catalog Number:

CPTC-GMNN-1

RRID:

AB_2617263

Target Antigen:

Geminin

Isotype:

IgG1

Species:

Mouse Monoclonal Antibody

Last Updated:

05/23/2024

Antigen Recognition(s):

Recombinant Full-length, Endogenous

Purchase
External Links
Characterization Data [Compare Characterization Data]
  CyTOF

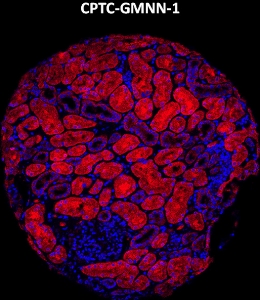

Click to enlarge image Imaging mass cytometry on normal kidney tissue core using CPTC-GMNN-1 metal-labeled antibody. Data shows an overlay of the target protein signal (red) and DNA (blue). Dilution: 1:100 of 0.5mg/mL stock. Signal was also obtained in other normal tissues (liver, bone marrow, spleen, placenta, prostate, colon, pancreas, breast, lung, testis, endometrium, appendix, and kidney) and cancer tissues (colon, breast, ovarian, lung, and prostate). Click image to enlarge

CPTC-GMNN-1 Immuno-Mass Cytometry

Result: Positive

Imaging mass cytometry on normal kidney tissue core using CPTC-GMNN-1 metal-labeled antibody. Data shows an overlay of the target protein signal (red) and DNA (blue). Dilution: 1:100 of 0.5mg/mL stock. Signal was also obtained in other normal tissues (liver, bone marrow, spleen, placenta, prostate, colon, pancreas, breast, lung, testis, endometrium, appendix, and kidney) and cancer tissues (colon, breast, ovarian, lung, and prostate).


Characterization SOP Files

  IHC HPA
Download This PDF contains the evaluation results provided by the Human Protein Atlas (www.proteinatlas.org) (109.2 KB)

CPTC-GMNN-1 Evaluation by the Human Protein Atlas

Result: Positive

This PDF contains the evaluation results provided by the Human Protein Atlas (www.proteinatlas.org)


Characterization SOP Files

  IHC NCI60

CPTC-GMNN-1 IHC NCI60

Result: Negative

This antibody is not suitable for use in an Immunohistochemistry format as described in SOP M-106.


Characterization SOP Files

  IHC Tissue

CPTC-GMNN-1 IHC Tissue

Result: Negative

This antibody is not suitable for use in an Immunohistochemistry format as described in SOP M-106.


Characterization SOP Files

  Indirect ELISA
Click to enlarge image Indirect ELISA (ie, binding of Antibody to Antigen coated plate) Click image to enlarge

CPTC-GMNN-1 Indirect ELISA

Result: Positive

Indirect ELISA (ie, binding of Antibody to Antigen coated plate)


Characterization SOP Files

  NCI 60 Protein Array

CPTC-GMNN-1 NCI 60 Protein Array

Result: Negative

This antibody is not suitable for use in a Reverse Phase Protein Array format as described in SOP M-105.


Characterization SOP Files

  Western Blot - Recombinant Protein or Peptide
Click to enlarge image Western Blot using CPTC-GMNN-1 as primary Ab against GMNN (Ag 10987) (lane 2). Also included are molecular wt. standards (lane 1) and mouse IgG control (lane 3). Click image to enlarge

CPTC-GMNN-1 Western blot

Result: Positive

Western Blot using CPTC-GMNN-1 as primary Ab against GMNN (Ag 10987) (lane 2). Also included are molecular wt. standards (lane 1) and mouse IgG control (lane 3).


Characterization SOP Files

[top]

Antibody: CPTC-GMNN-2
Background

Catalog Number:

CPTC-GMNN-2

RRID:

AB_10805876

Target Antigen:

Geminin

Isotype:

IgG1

Species:

Mouse Monoclonal Antibody

Last Updated:

05/23/2024

Antigen Recognition(s):

Recombinant Full-length, Endogenous

Purchase
External Links
Characterization Data [Compare Characterization Data]
  CyTOF
Click to enlarge image Imaging mass cytometry on normal lung tissue core using CPTC-GMNN-2 metal-labeled antibody. Data shows an overlay of the target protein signal (red) and DNA (blue). Dilution: 1:100 of 0.5mg/mL stock. Signal was also obtained in other normal tissues (liver, bone marrow, spleen, placenta, prostate, colon, pancreas, breast, lung, testis, endometrium, appendix, and kidney) and cancer tissues (colon, breast, ovarian, lung, and prostate). Click image to enlarge

CPTC-GMNN-2 Immuno-Mass Cytometry

Result: Positive

Imaging mass cytometry on normal lung tissue core using CPTC-GMNN-2 metal-labeled antibody. Data shows an overlay of the target protein signal (red) and DNA (blue). Dilution: 1:100 of 0.5mg/mL stock. Signal was also obtained in other normal tissues (liver, bone marrow, spleen, placenta, prostate, colon, pancreas, breast, lung, testis, endometrium, appendix, and kidney) and cancer tissues (colon, breast, ovarian, lung, and prostate).


Characterization SOP Files

  IHC HPA
Download This PDF contains the evaluation results provided by the Human Protein Atlas (www.proteinatlas.org) (98.1 KB)

CPTC-GMNN-2 Evaluation by

Result: Negative

This PDF contains the evaluation results provided by the Human Protein Atlas (www.proteinatlas.org)


Characterization SOP Files

  IHC Tissue
Click to enlarge image Tissue Micro-Array(TMA) core of lung cancer showing nuclear staining using Antibody CPTC-GMNN-2. Titer: 1:800 Click image to enlarge

CPTC-GMNN-2 IHC Tissue

Result: Positive

Tissue Micro-Array(TMA) core of lung cancer showing nuclear staining using Antibody CPTC-GMNN-2. Titer: 1:800


Characterization SOP Files

  Immunofluorescence - HPA
Click to enlarge image Results provided by the Human Protein Atlas (www.proteinatlas.org). The subcellular location is supported by literature. Immunofluorescent staining of human cell line U-251 MG shows localization to nucleoplasm & cytosol. Human assay: A-431 fixed with PFA, dilution: 1:200 Human assay: U-2 OS fixed with PFA, dilution: 1:200 Human assay: U-251 MG fixed with PFA, dilution: 1:200 Click image to enlarge

CPTC-GMNN-2 Evaluation by the Human Protein Atlas

Result: Positive

Results provided by the Human Protein Atlas (www.proteinatlas.org). The subcellular location is supported by literature. Immunofluorescent staining of human cell line U-251 MG shows localization to nucleoplasm & cytosol. Human assay: A-431 fixed with PFA, dilution: 1:200
Human assay: U-2 OS fixed with PFA, dilution: 1:200
Human assay: U-251 MG fixed with PFA, dilution: 1:200


Characterization SOP Files

  Indirect ELISA
Click to enlarge image Indirect ELISA (ie, binding of Antibody to Antigen coated plate) Click image to enlarge

CPTC-GMNN-2 Indirect ELISA

Result: Positive

Indirect ELISA (ie, binding of Antibody to Antigen coated plate)


Characterization SOP Files

  Western Blot - Recombinant Protein or Peptide
Click to enlarge image Western Blot using CPTC-GMNN-2 as primary Ab against GMNN (Ag 10987) (lane 2). Also included are molecular wt. standards (lane 1) and mouse IgG control (lane 3). Click image to enlarge

CPTC-GMNN-2 Western blot

Result: Positive

Western Blot using CPTC-GMNN-2 as primary Ab against GMNN (Ag 10987) (lane 2). Also included are molecular wt. standards (lane 1) and mouse IgG control (lane 3).


Characterization SOP Files

[top]

Antibody: CPTC-GMNN-3
Background

Catalog Number:

CPTC-GMNN-3

Target Antigen:

Geminin

Isotype:

IgG2b

Species:

Mouse Monoclonal Antibody

Last Updated:

11/14/2019

Antigen Recognition(s):

Recombinant Full-length

Purchase
Characterization Data [Compare Characterization Data]
  IHC HPA
Download This PDF contains the evaluation results provided by the Human Protein Atlas (www.proteinatlas.org) (95.7 KB)

CPTC-GMNN-3 Evaluation by the Human Protein Atlas

Result: Negative

This PDF contains the evaluation results provided by the Human Protein Atlas (www.proteinatlas.org)


Characterization SOP Files

  IHC NCI60

CPTC-GMNN-3 IHC NCI60

Result: Negative

This antibody is not suitable for use in an Immunohistochemistry format as described in SOP M-106.


Characterization SOP Files

  IHC Tissue

CPTC-GMNN-3 IHC Tissue

Result: Negative

This antibody is not suitable for use in an Immunohistochemistry format as described in SOP M-106.


Characterization SOP Files

  Indirect ELISA
Click to enlarge image Indirect ELISA (ie, binding of Antibody to Antigen coated plate) Click image to enlarge

CPTC-GMNN-3 Indirect ELISA

Result: Positive

Indirect ELISA (ie, binding of Antibody to Antigen coated plate)


Characterization SOP Files

  NCI 60 Protein Array

CPTC-GMNN-3 NCI 60 Protein Array

Result: Negative

This antibody is not suitable for use in a Reverse Phase Protein Array format as described in SOP M-105.


Characterization SOP Files

  Western Blot - Recombinant Protein or Peptide
Click to enlarge image Western Blot using CPTC-GMNN-3 as primary Ab against GMNN (Ag 10987) (lane 2). Also included are molecular wt. standards (lane 1) and mouse IgG control (lane 3). Click image to enlarge

CPTC-GMNN-3 Western blot

Result: Positive

Western Blot using CPTC-GMNN-3 as primary Ab against GMNN (Ag 10987) (lane 2). Also included are molecular wt. standards (lane 1) and mouse IgG control (lane 3).


Characterization SOP Files

[top]

Antigen: Geminin
Background

NCI Identification Number:

10987

Antigen Name:

Geminin

CPTC Name:

CPTC-GMNN

Aliases:

Gem; OTTHUMP00000039393; RP3-369A17.3; geminin

Function:

Inhibits DNA replication by preventing the incorporation of MCM complex into prereplication complex (pre-RC). It is degraded during the mitotic phase of the cell cycle. Its destruction at the metaphase-anaphase transition permits replication in the succeeding cell cycle.

Chromosomal Localization:

6p22.2

Expression System:

E. Coli

Accession Number:

BC005185.1

UniProt Accession Number:

O75496

DNA Source:

OB : MHS1011-62496

Immunogen:

Recombinant Full Length Protein

Vector Name:

pMCSG7

Extinction Coefficient:

10033

Buffers:

PBS

Expressed Sequence:

SNAMNPSMKQKQEEIKENIKNSSVPRRTLKMIQPSASGSLVGRENELSAG
LSKRKHRNDHLTSTTSSPGVIVPESSENKNLGGVTQESFDLMIKENPSSQ
YWKEVAEKRRKALYEALKENEKLHKEIEQKDNEIARLKKENKELAEVAEH
VQYMAELIERLNGEPLDNFESLDNQEFDSEEETVEDSLVEDSEIGTCAEG
TVSSSTDAKPCI

Native Sequence:

MNPSMKQKQEEIKENIKNSSVPRRTLKMIQPSASGSLVGRENELSAGLSK
RKHRNDHLTSTTSSPGVIVPESSENKNLGGVTQESFDLMIKENPSSQYWK
EVAEKRRKALYEALKENEKLHKEIEQKDNEIARLKKENKELAEVAEHVQY
MAELIERLNGEPLDNFESLDNQEFDSEEETVEDSLVEDSEIGTCAEGTVS
SSTDAKPCI

Calculated Isoelectric Point:

4.93

Molecular Weight:

23.57

Last Updated:

12/11/2009

Links

Characterization Data

Gel

Click to enlarge image PAGE of Ag 10987 (with molecular weight standards in lane 1)
Click image to enlarge

CPTC-GMNN PAGE

PAGE of Ag 10987 (with molecular weight standards in lane 1)

No SOPs available.
